Specifying List Columns

Many of the panels in Scenarios display information about routes, recurring jobs, markers, drivers, vehicles, and jobs as lists. The visibility of the columns of information in these lists is controlled by the column picker, which appears in the title bar of each column.

To indicate which columns you want to display and which you want to hide:

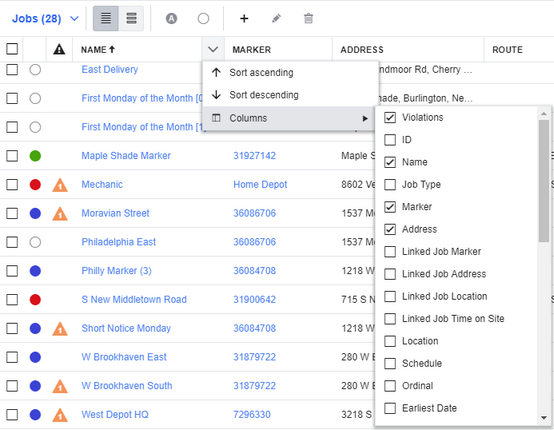

1.Click any column picker on the far right of a column title bar. The picker appears as a downward-facing, gray arrow.
2.Click Columns in the drop-down menu, and then select the check box next to the name of every column you want to appear in the list.



The information shown under the columns for each list screen is described below:

List Panel (Jobs) Columns

Column

Details

Address

The address of the job, including the country.

Code

The arbitrary code that is assigned to this job.

Days

The days of the week when the job can be completed.

Dis. Driver Tags

The attributes that the driver must not provide to complete this job.

Dis. Route Tags

The attributes that the route must not provide to assign this job to the route.

Earliest Date

The earliest date when this job can be completed.

Forbidden Drivers

The drivers forbidden from completing this job.

ID

The unique identifier of the job.

Job Type

The type of job. If this scenario is synchronized with the Verizon Connect platform, the job type must be one that was defined in the Verizon Connect platform.

Latest Date

The latest date when this job must be completed.

Linked Job Address

The address of a job that is linked to this job.

Linked Job Location

The latitude and longitude coordinates of a job that is linked to this job.

Linked Job Marker

The unique identifier of the marker where a job that is linked to this job is located. When this job is assigned to a route, a secondary stop to the linked job is assigned to the route immediately after this job.

Linked Job Time on Site

The time on site for a job that is linked to this job.

Location

The latitude and longitude coordinates of the job's location.

Marker

The unique identifier of the marker where this job is located. Markers are listed in the Markers list panel.

Name

The name of the job.

Order



Ordinal

The position of the job in a recurring job. If this is the first job in a recurring job, the ordinal is 0. If the recurring job is for three times a week on Mondays, Wednesdays, and Fridays, and the job is on the second Monday, the ordinal is 3.

Preferred Driver

The preferred drivers for completing this job.

Priority

The priority of the job. One of "Lowest", "Low", "Normal", "High", or "Highest".

Recurring Job

The ID or name of the recurring job that was used to create the job.

Req. Driver Tags

The attributes that the driver must provide to complete this job. These attributes could be a specific license category, training to handle a class of goods, or ability to operate one type of equipment.

Req. Route Tags

The attributes that the route must provide to assign this job to the route.

Req. Vehicle Tags

The attributes that the vehicle must provide to complete this job. These attributes could be a high load capacity, a crane, PTO capabilities, or a refrigeration unit.

Route

The route the job is assigned to.

Tags

The arbitrary attributes that are associated with this job.

Time On Site

The length of time that a driver is expected to spend at the customer site servicing this job. The units can be hours (h), minutes (m), and seconds (s).

Time Window 2 End

The end time of the job's second time window. Drivers can arrive at the job site between the times defined in "Time Window 2 Start" and "Time Window 2 End".

Time Window 2 Start

The start time of the job's second time window. Drivers can arrive at the job site between the times defined in "Time Window 2 Start" and "Time Window 2 End".

Time Window End

The end time of the job's time window. Drivers can arrive at the job site between the times defined in "Time Window Start" and "Time Window End".

Time Window Start

The start time of the job's time window. Drivers can arrive at the job site between the times defined in "Time Window Start" and "Time Window End".

Violations

This column shows a Violations icon if there are violations related to the job. The number on the icon indicates how many violations there are.

[Custom] Custom

The custom properties specified on this job.



List Panel (Recurring Job) Columns

Column

Details

Address

The address of the recurring job.

Base Date

The day of the week on which to base the recurring job. If the base date is a Monday, recurring jobs can be scheduled on Mondays within the given month. If you also define "Vary Before" or "Vary After", recurring jobs can be on the given number of days on either side of a Monday. The base date can be later than the delivery dates.

Code

The arbitrary code that is assigned to the recurring job.

Days

The days of the week a job can be scheduled when using this recurring job.

Dis. Driver Tags

The attributes that the driver must not provide to assign the recurring job to the route.

Dis. Route Tags

The attributes that the route must not provide to assign the recurring job to the route.

Earliest Date

The earliest date when a job based on the recurring job can start.

Errors

The description of an error that has occurred for this recurring job.

Forbidden Drivers

The drivers forbidden from completing jobs that are based on this recurring job.

Frequency

How often does a recurring job need to be completed per period. For example, 3 times per week.

ID

The unique identifier of the recurring job.

Interval

At which interval does a recurring job need to be completed. For example, every 3 weeks.

Job Type

The job type for the scheduled job.

Latest Date

The latest date when a job based on the recurring job can start.

Linked Job Address

The address of a job that is linked to this scheduled job.

Linked Job Location

The latitude and longitude coordinates of a job that is linked to this scheduled job.

Linked Job Marker

The unique identifier for the marker of a job that is linked to this job. When a job based on this recurring job is assigned to a route, a secondary stop to the linked job is assigned to the route immediately after this job.

Linked Job Time on Site

The time on site for a job that is linked to this scheduled job.

Location

The longitude and latitude coordinates of the scheduled job's location.

Marker

The unique identifier for the marker where this scheduled job is located. The marker is listed in the Markers list panel.

Name

The name of the recurring job.

Preferred Driver

The preferred driver for jobs that are based on this recurring job.

Priority

The priority of the scheduled job. One of "Lowest", "Low", "Normal", "High", or "Highest".

Req. Driver Tags

The attributes that the driver must provide to assign the scheduled job to the route.

Req. Route Tags

The attributes that the route must provide to assign the scheduled job to the route.

Req. Vehicle Tags

The attributes that the vehicle must provide to assign the scheduled job to the route.

Tags

The arbitrary attributes that are associated with the scheduled job.

Target Date

The date when a job based on this recurring job can be created. It is based on the "Base Date", but, unlike the base date, must be within the date range in which jobs can be scheduled.

Time on Site

The length of time that a driver is expected to spend at the customer site servicing this scheduled job. The units can be hours (h), minutes (m), and seconds (s).

Time Window 2 End

The end time of the scheduled job's second time window. Drivers can arrive at the job site between the "Time Window 2 Start" and "Time Window 2 End" times.

Time Window 2 Start

The start time of the scheduled job's second time window. Drivers can arrive at the job site between the "Time Window 2 Start" and "Time Window 2 End" times.

Time Window End

The end time of the scheduled job's time window. Drivers can arrive at the job site between the "Time Window Start" and "Time Window End" times.

Time Window Start

The start time of the scheduled job's time window. Drivers can arrive at the job site between the "Time Window Start" and "Time Window End" times.

Type

The type of recurring job. For example, "One off", "Daily", or "Times per month".

Vary After

The number of days after the "Base Date" that a job can be scheduled. For example, if you set "Vary After" to 1 and "Base Date" is Wednesday, the job can be scheduled on either Wednesday or Thursday.

Vary Before

The number of days before the "Base Date" that a job can be scheduled. For example, if you set "Vary Before" to 1 and "Base Date" is Wednesday, the job can be scheduled on either Wednesday or Tuesday.

[Custom] Custom

The custom properties specified on the scheduled job.



List Panel (Drivers) Columns

Column

Details

Cost Per Hour

The number of US dollars paid to the driver per hour worked.

Current Shift Pattern

The name or unique identifier of the driver's current shift pattern.

End Address

The end address for this driver's routes.

End Location

The end location, as a latitude and longitude coordinate pair, for this driver's routes.

End Marker

The unique identifier for the end marker for this driver's routes.

Errors

The description of an error that has occurred for the driver.

First

The driver's first name.

ID

The unique identifier of the driver.

Maximum Route  Days

The maximum length, in days, that a multi-day route can be for the driver.

Middle

The driver's middle name.

Name

The driver's full name.

Overtime Cost Per Hour

The number of US dollars paid to the driver per hour of overtime worked.

Shift Pattern End

The date when the driver's shift pattern ends.

Shift Pattern Start

The date when the driver's shift pattern starts.

Shift Patterns

The names or unique identifiers of the driver's shift patterns. Shift patterns may not overlap.

Start Address

The start address for this driver's routes.

Start Location

The start location, as a latitude and longitude coordinate pair, for this driver's routes.

Start Marker

The unique identifier for the start marker for the driver's routes.

Surname

The driver's last name.

Tags

The attributes that apply to the driver.

Vehicle

The preferred vehicle for this driver.

[Custom] Custom

The custom properties specified for the driver.



List Panel (Markers) Columns

Column

Details

Address

The formatted address of the marker, not including the country.

Categories

The category that this marker is in and that has been defined in the Verizon Connect platform.

Country

The country that the marker is in, as a two letter country code.

Errors

A description of an error that has occurred for this marker.

ID

The unique identifier of the marker.

Intersection

The map coordinates of the location where the marker's location intersects with the street (where the driveway meets the road).

Location

The map coordinates of the marker, as a latitude and longitude coordinate pair.

Name

The name of the marker.

Notes

Notes about the marker.

Used By

The entities (jobs, drivers, vehicles, routes, or recurring jobs) using this marker.

[Custom] Custom

The custom properties specified for this marker.



List Panel (Vehicles) Columns

Column

Details

Address

The street address where routes for this vehicle start and end.

Allow Ferries

Whether routes for this vehicle are allowed to include ferry crossings. Either "Yes" or "No".

Cost per {KM or Mile}

The number of US dollars per kilometer or mile driven.

Driving Speed %

Percentage of the vehicle's expected speed. The default is 100%.

Enable Historic Traffic

Whether routes for this vehicle should consider historic traffic data. Either "Yes" or "No".

Errors

The description of an error that has occurred for the vehicle.

Fixed Cost

The number of US dollars for using this vehicle.

Gross Weight

The weight of the vehicle, with the vehicle's load, in the units defined in your user settings.

Hazmat Load Types

The type of hazardous material the vehicle may carry. One of "Non hazardous", "hazmat1", "hazmat2", "hazmat3", "hazmat4", "hazmat5", "hazmat6", "hazmat7", "hazmat8", "hazmat9", or "hazardous".

Height

The height of the vehicle in the units defined in your user settings.

ID

The unique identifier of the vehicle.

Kingpin To Last Axle

The length of the vehicle, measured from kingpin to last axle, in the units defined in your user settings.

Length

The length of the vehicle in the units defined in your user settings.

Location

The latitude and longitude coordinates of the location where routes for this vehicle start and end.

Marker

The unique identifier for the vehicle's base marker, where routes for this vehicle start and end. The marker is listed in the Markers list panel.

Max Jobs on Route

The maximum number of jobs the vehicle can service in one route.

Name

The name of this vehicle.

Number Of Axles

The vehicle's number of axles.

Number Of Trailers

The vehicle's number of trailers.

Number Of Wheels

The vehicle's number of wheels.

Req. Driver Tags

The attributes that the driver must provide to assign the vehicle to a route.

Routing Entity Id

A unique identifier.

Same-side Routing

Whether the vehicle must approach a stop on the same side of the road as the stop entrance, preventing crossing the street and oncoming lanes of traffic. Either "Yes" or "No".

Tags

The custom attribute assigned to this vehicle.

Time On Site at End

The amount of time spent at the end location, for example for unloading the vehicle.

Time on Site at Return to Depot

The amount of time spent at the depot when returning to reload the vehicle.

Time On Site at Start

The amount of time spent at the start location, for example for loading the vehicle.

Unladen Weight

The weight of the vehicle, without the vehicle's load, in the units defined in your user settings.

Vehicle Type

The type of vehicle. For example, "Automobile" or "Straight Truck".

Width

The width of the vehicle in the units defined in your user settings.



Routes Panel Columns

Column

Details

Allow Ferries

Whether the vehicle that is planned to be used on the route is allowed to travel on ferries.

Breaks Relative to Start

Whether the break start times on this route are relative to the shift start time.

Cost

The total cost of the route in US dollars.

Cost per Hour

The number of US dollars paid to this driver per hour worked.

Cost per {Kilometer or Mile}

The number of US dollars per kilometer or mile driven.

Date

The date when the route starts.

Distance

The distance of the route in the units that are defined in your user settings.

Driver

The name of the driver assigned to the route.

Driving Hours

The number of hours that the vehicle will be driven while servicing this route.

Driving Speed %

The percentage of the speed at which vehicles are expected to travel on the route.

Enable End Stem Time

Whether to include the time it takes to drive from the last job to the end depot in the route calculations.

Enable Historic Traffic

Whether the route uses historic traffic data for making routing decisions.

Enable Start Stem Time

Whether to include the time it takes to drive from the start depot to the first job in the route calculations.

End Address

The street address where the route ends.

End Location

The map coordinates where the route ends, as a latitude and longitude coordinate pair.

End Marker

The identifier of the marker where the route ends. Markers are listed in the Markers list panel.

End Time

The time of day when the route ends.

Fixed Cost

The number of US dollars for using this route, excluding any variable costs for distance or driver pay.

Gantt Chart

View the routes in the route list on a Gantt Chart. This feature is available when you display routes in a list using the Display routes in a list button. The Gantt chart is also shown when selecting the Display routes in a group button, but you cannot interact with the Gantt chart by dragging jobs between routes or to a new position within a route.

Gross Weight

The weight, including load, of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

Hazmat Load Type

The type of hazardous material that can be carried on the route. Applicable only to "truck" vehicle types. One of "Non hazardous", "hazmat1", "hazmat2", "hazmat3", "hazmat4", "hazmat5", "hazmat6", "hazmat7", "hazmat8", "hazmat9", or "hazardous".

Height

The height of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

Hours

The total duration of this route.

ID

The unique identifier of the route.

Jobs

The number of jobs on the route.

Kingpin To Last Axle

The length from kingpin to last axle of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

Length

The length of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

Link Multiday Route

Whether this route is part of a multi-day route which continues on the following day.

Max Driving Time

The maximum time the driver can spend driving the route.

Max Jobs on Route

The maximum number of jobs the route can contain.

Max Working Time

The maximum total time of the route.

Name

The name of the route.

Normal Working Time

The total time on the route before overtime rates must be paid.

Number Of Axles

The number of axles of the vehicle that is planned to be used on the route.

Number Of Trailers

The number of trailers of the vehicle that is planned to be used on the route.

Number Of Wheels

The number of wheels of the vehicle that is planned to be used on the route.

Optimize Start Time

Whether the route uses a variable work shift.

Overtime Cost per Hour

The number of US dollars paid to this driver per hour of overtime worked.

Planned Start Time

The projected start time of the route.

Same-side Routing

Whether vehicles on the route are required to approach a stop on the same side of the road as the stop entrance, preventing crossing the street and oncoming lanes of traffic. Either "Yes" or "No".

Start Address

The street address where the route starts.

Start Location

The map coordinates where the route starts, as a latitude and longitude coordinate pair.

Start Marker

The identifier of the marker where the route starts. Markers are listed in the Markers list panel.

Start Time

The time of day when the route starts.

Tags

The attributes that apply to the route.

Time On Site at End

The amount of time spent at the end location, for example for unloading the vehicle.

Time On Site at Return to Depot

The amount of time spent at the depot when returning to reload the vehicle.

Time On Site at Start

The amount of time spent at the start location, for example for loading the vehicle.

Unladen Weight

The weight, without load, of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

Vehicle

The name of the vehicle assigned to the route.

Vehicle Type

The type of vehicle that is used for calculating the route. For example, "Car" or "Straight Truck".

Violations

This column shows a Violations icon if there are violations related to the route. The number in the icon indicates how many violations there are.

Width

The width of the vehicle that is planned to be used on the route, in the units that are defined in your user settings.

{Custom} Custom

The custom properties specified for this route.



Job Order Panel Columns

Column

Details

Stop

The stop number or, if this job is at the depot, the Depot icon.

Arrival

The arrival time of the job.

Code

The arbitrary code that is assigned to the job.

Days

The days of the week for which the job is scheduled.

Departure

The departure time of the job.

Dis. Driver Tags

The driver attributes that the job must not provide.

Dis. Route Tags

The route attributes that the job must not provide.

Distance To

The distance to the job site in kilometers.

Earliest Date

The earliest date that this job can be routed.

Forbidden Drivers

The drivers forbidden from completing this job.

ID

The unique identifier of the job.

Idle Time

The idle time of the job. This is time when the engine ignition is on, but there is no vehicle movement.

Job

The name and address of the job. Click on the job's name to open the Job dialog box, from where you can edit the job's details.

Latest Date

The latest date that this job can be routed.

Location

The latitude and longitude coordinates of the job's location.

Marker

The unique identifier for the vehicle's base marker, where routes for this vehicle start and end. The marker is listed in the Markers list panel.

Ordinal

The order of the job in a recurring job, if it is part of a recurring job.

Preferred Driver

The preferred driver for completing this job.

Priority

The priority of the job. One of "Lowest", "Low", "Normal", "High", or "Highest".

Recurring Job

The recurring job the job was created from.

Req. Driver Tags

The driver attributes that the job must provide.

Req. Route Tags

The route attributes that the job must provide.

Req. Vehicle Tags

The vehicle attributes that the job must provide.

Tags

The arbitrary attributes associated with this job.

Time On Site

The length of time that will be spent at the customer site servicing this job; typically in hours and minutes, or minutes, but may also include seconds.

Time To

The time remaining until arrival at the job site.

Time Window 2 End

The end time of the job's second time window. Drivers can arrive at the job site between the times defined in "Time Window 2 Start" and "Time Window 2 End".

Time Window 2 Start

The start time of the job's second time window. Drivers can arrive at the job site between the times defined in "Time Window 2 Start" and "Time Window 2 End".

Time Window End

The end time of the job's time window. Drivers can arrive at the job site between the times defined in "Time Window Start" and "Time Window End".

Time Window Start

The start time of the job's time window. Drivers can arrive at the job site between the times defined in "Time Window Start" and "Time Window End".

Unlink

If this job is linked to another job, the Unlink option allows you to unlink the two jobs.

Violations

The violations generated by this job.

[Custom] Custom

The custom properties specified on this job.
