Editing Routes

The Edit Route dialog box is used to view and edit information about routes you, or Verizon Connect® Scenarios™, created earlier. Click a route name in the Daily Routes List to display this dialog box, or right-click a row in the Daily Routes List or the Route Timeline, or a highlighted route on the map, and select Edit from the contextual menu.

Routes that are complete, or already underway, cannot be edited. However, you can edit jobs within routes that are complete or under way, if those jobs have not been started or completed. See the In-Progress Jobs and Routes in Dispatch Knowledge Base article for details on how to manage jobs on routes that are already in progress.

1.Use the date control in the upper left corner of the Jobs List panel to select the date of the route to edit. You can also change day using the left and right arrows to move ahead or back one day at a time:


If the route list is long, use the search filter to search for routes with a particular name, vehicle or driver.
oType the name, or part of the name, of a route, vehicle or a driver. Filtering of the list is performed as you type.
oClick the Clear button () to clear the contents of the filter control.

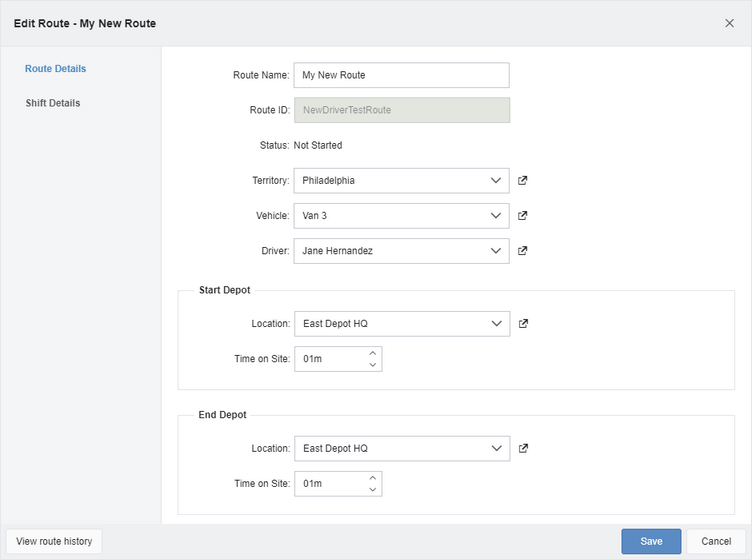

2.Click the highlighted route name in the Daily Routes panel, or right-click the route and select Edit from the contextual menu. The Edit Route dialog box opens:

You can quickly access the territory, vehicle, driver and marker dialog boxes and screens from this tab by clicking on the 'details' button () to the right of fields that support this functionality.

The Edit Route dialog box displays the current details of the selected route:
oRoute Name - the name of the route.
oTerritory - the territory containing this route. If you change the territory in this drop-down menu, a warning message is displayed at the bottom of the dialog box.
oVehicle - the name of the vehicle scheduled to be used for this route.
oDriver - the name of the driver scheduled to complete this route.
oStart Location - the location where the driver begins this route.
oStart Time On Site - the length of time the vehicle spends at the start location at the start of the route.
oEnd Location - the location where the driver completes this route. This might be the same location as the Driver Start Location or a different location if, for example, the route starts at a depot but ends at the driver's home.
oEnd Time On Site - the length of time the vehicle spends at the end location at the end of the route.
3.Click the Save button to save any changes you make, or click the Cancel button to close the dialog box without making any changes to the route.
